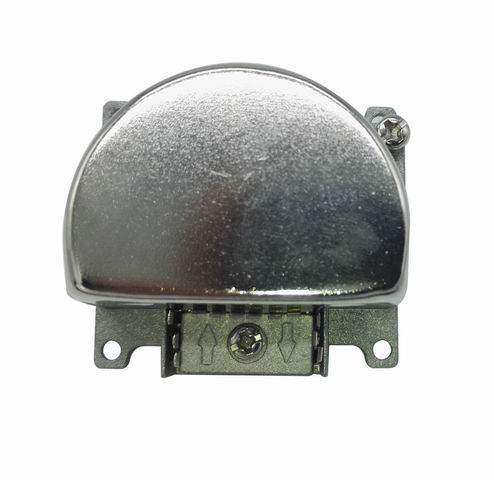

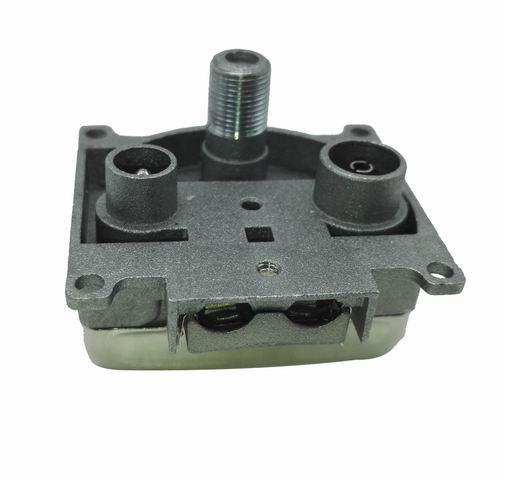

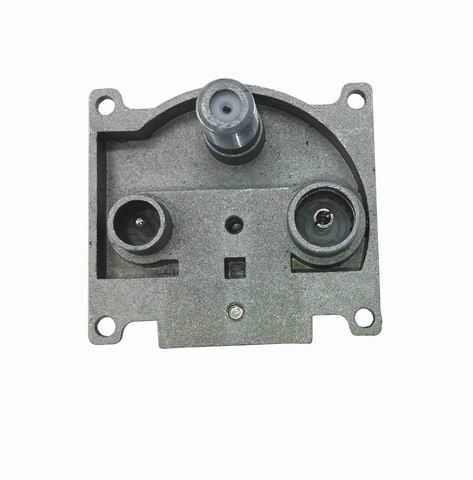

| ITEM: XL-PB06 IN-SAT,TV,FM | ||
| Parameter | Frequency Range | Specifications |
| IN-SAT | 950-2300MHz | 3.5dB MAX (Insertion Loss) |
| 5-860MHz | 18dB MIN (Rejection) | |
| 5-300MHz | 18dB MIN (Rejection) | |
| IN-TV | 450-860MHz | 3.0dB MAX (Insertion Loss) |
| 950-2300MHz | 15dB MIN (Rejection) | |
| IN-FM | 88-230MHz | 3.0dB MAX (Insertion Loss) |
| Power Passing | IN-SAT | 12-24V/500mA (Max) |
