17VATC

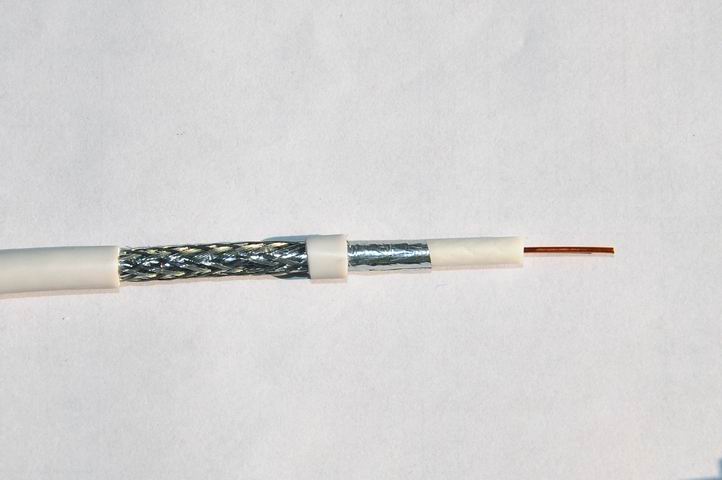

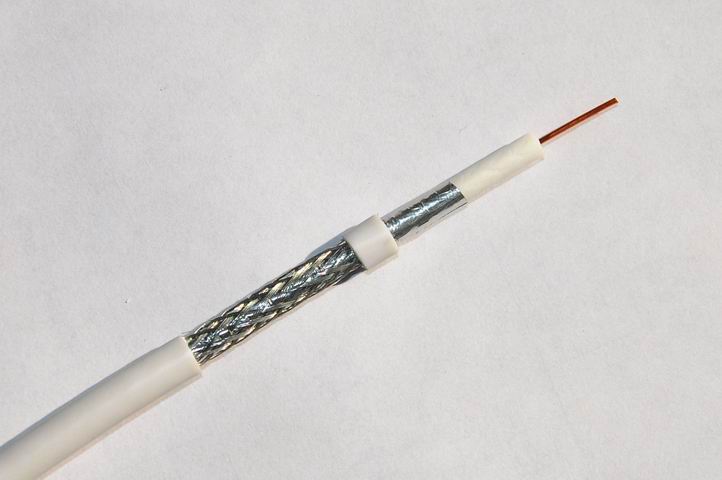

Coaxial  Cable  17VATC-Series
Physical Characteristics
Component Inches mm
Inner Conductor Diameter 0.044 1.13
Diameter Over Dielectric 0.189 4.80
Diameter Over Outer Conductor 0.216 5.50
Diameter Over Jacket 0.267 6.80
Mechanical  and  Electrical   Characteristics
Impedance 75±3.0 Ohms
Capacitance 52(pF/m)
Velocity of Propagation 83%
Return Loss(dB) VHF30-310MHz 25dB
UHF310-460MHz 24dB
Screening  Efficiency(dB) VHF5-50MHz 85dB
UHF200MHzUpward 90dB
Attenuation[@68°F. (20)]
Frequency(MHz) Maximum(dB/100ft) Maximum(dB/100m)
47 0.17 4.30
100 0.24 6.00
230 0.35 8.90
300 0.40 10.2
400 0.46 11.8
800 0.69 17.5
860 0.70 17.9
1000 0.77 19.5
1350 0.90 23.0
1750 1.03 26.3
2050 1.14 28.9
2150 1.16 29.5
2400 1.23 31.3
